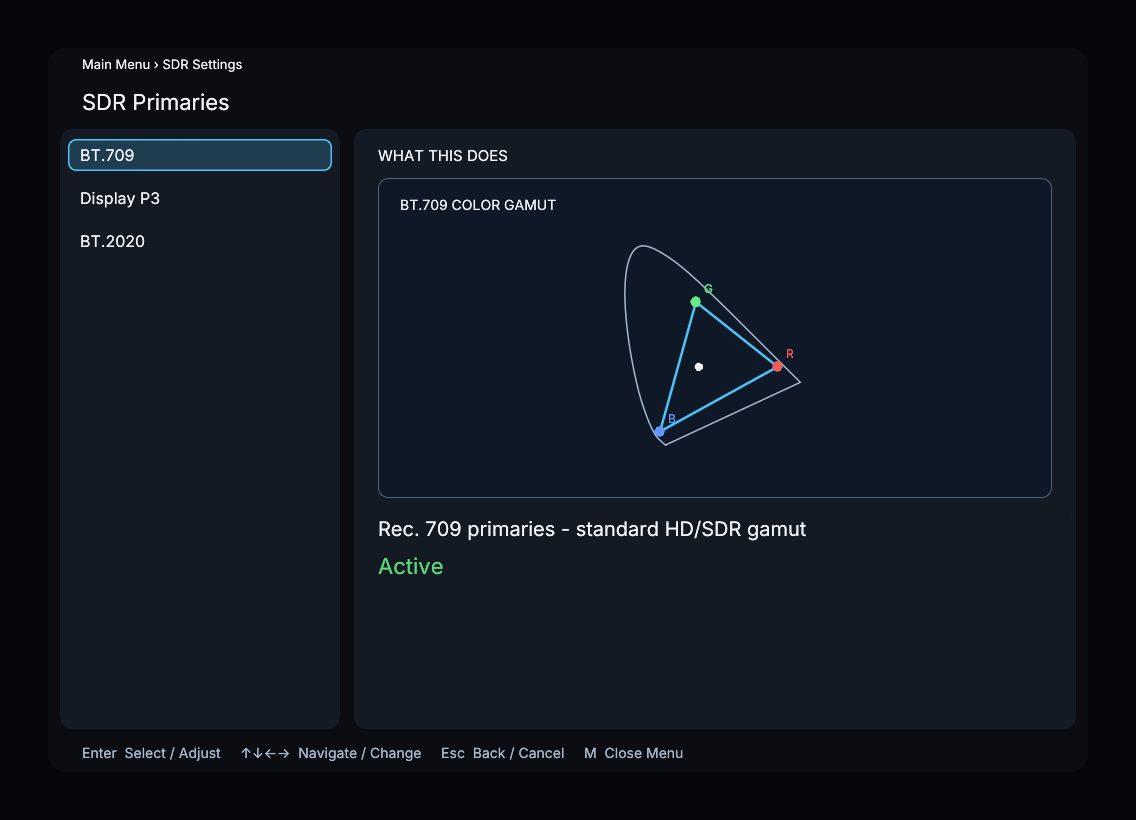

SDR Output Primaries
Select the output color gamut for SDR rendering. The currently active primaries are highlighted in the menu.
Display LUT replaces this output transform while enabled, so this selector is disabled until the LUT is turned off.
Built-in options
| Primaries | Internal Name | Description |
|---|---|---|
| BT.709 | bt709 | Rec. 709 -- standard HD/SDR gamut |
| Display P3 | displayp3 | Display P3 -- wide gamut for modern displays |
| BT.2020 | bt2020 | Rec. 2020 -- ultra-wide gamut HDR standard |
Default: BT.709
Choose the matching output gamut
Match the display’s configured input gamut or use a saved measured profile. Panel gamut coverage alone does not establish which signal encoding the display expects.
Saved custom color spaces also appear in the list, using their profile names and measured primaries.
Menu Path
Main Menu > SDR Settings > Output Primaries
