Screen ​

Open Screen Configuration → Screen and select the ratio of the physical screen, not the current film or video.

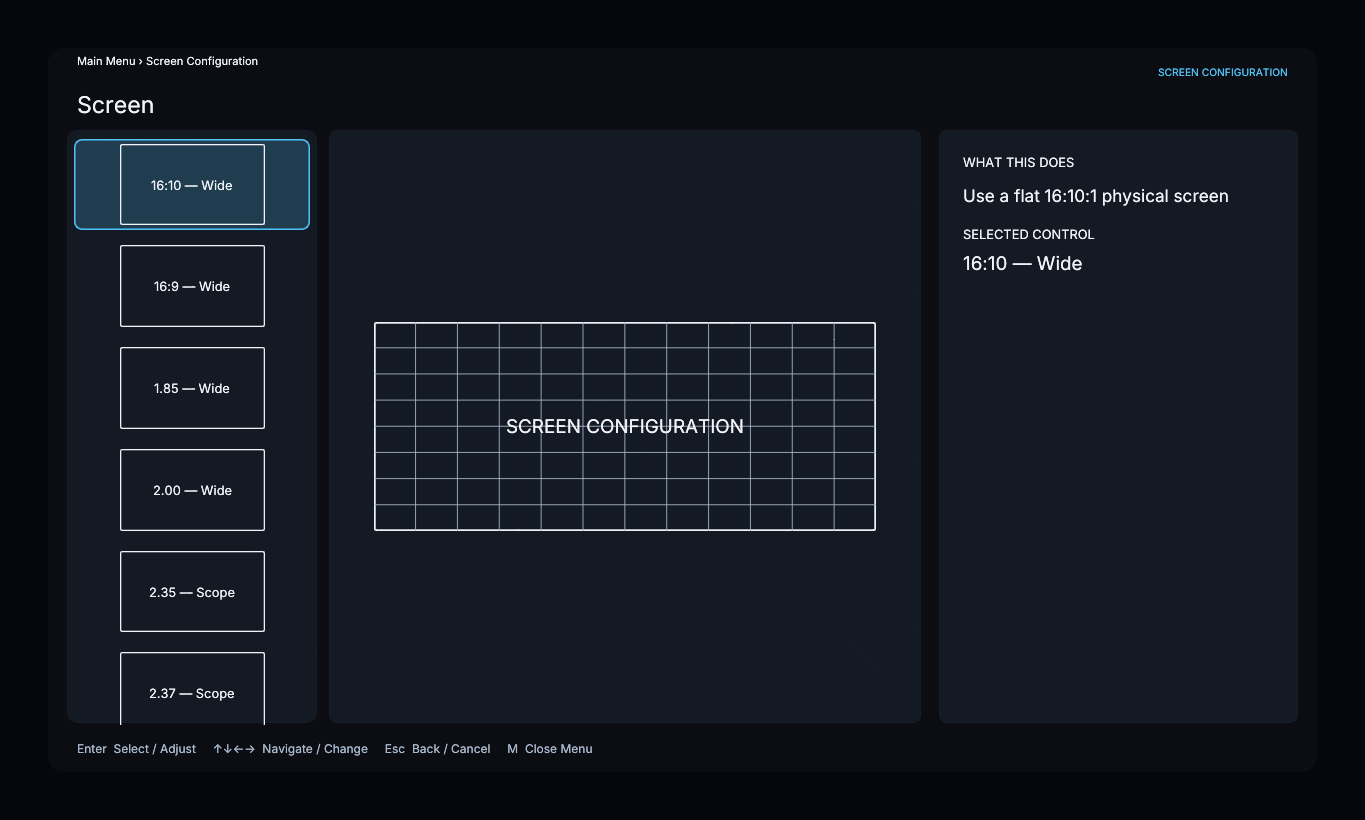

Screen aspect-ratio choices

The list contains 16:10, 16:9, 1.85, 2.00, 2.35, 2.37, 2.39, and 2.40. For another ratio, select Custom and adjust Custom Aspect Ratio from 1.00 to 4.00.

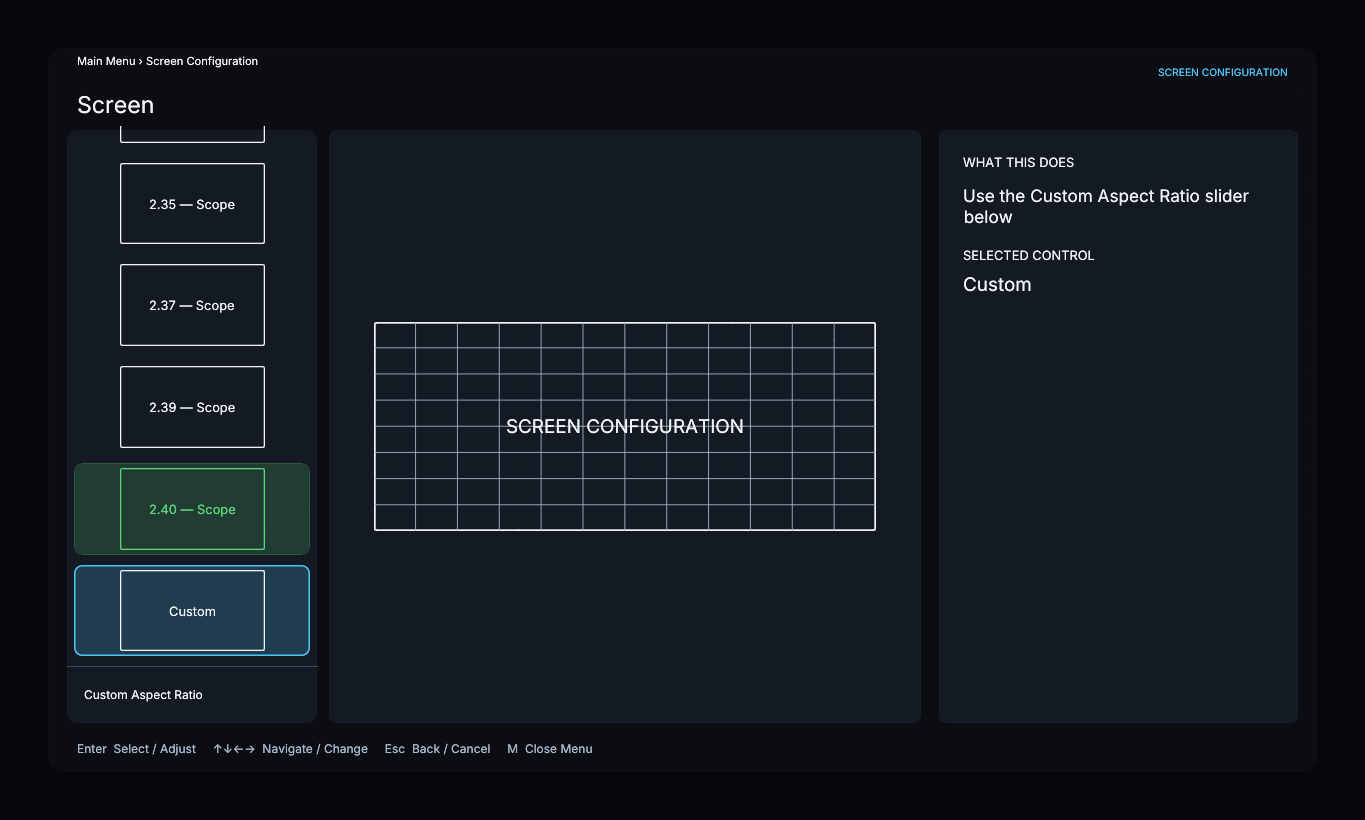

Custom screen ratio

The screen ratio does not change the display output resolution. Ratios of 2.30:1 or wider are classified as Scope and make the Anamorphic Lens menu available. Selecting a Scope screen does not enable lens compensation.

This page defines a flat screen. There is no Flat/Curved selection or radius wizard in the current menu.

Configure an installed lens →
